LED Shoebox | Multi Purpose Fixtures

Quick Ship Program

6 Year Warranty

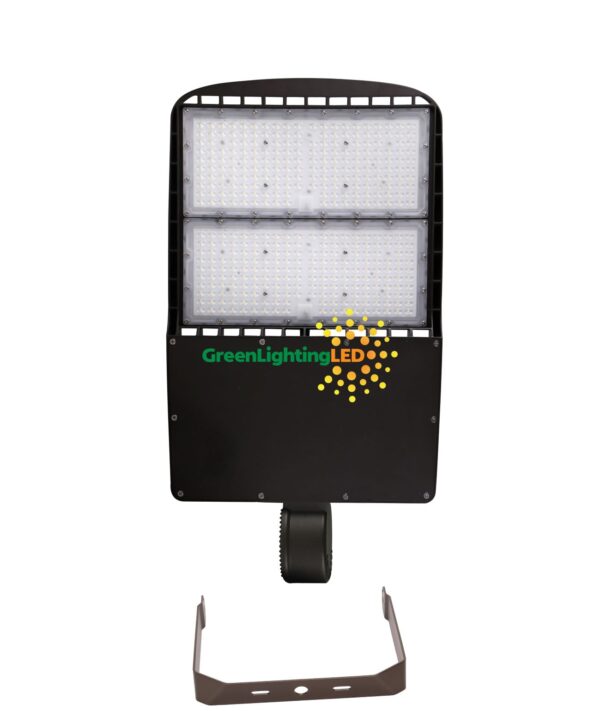

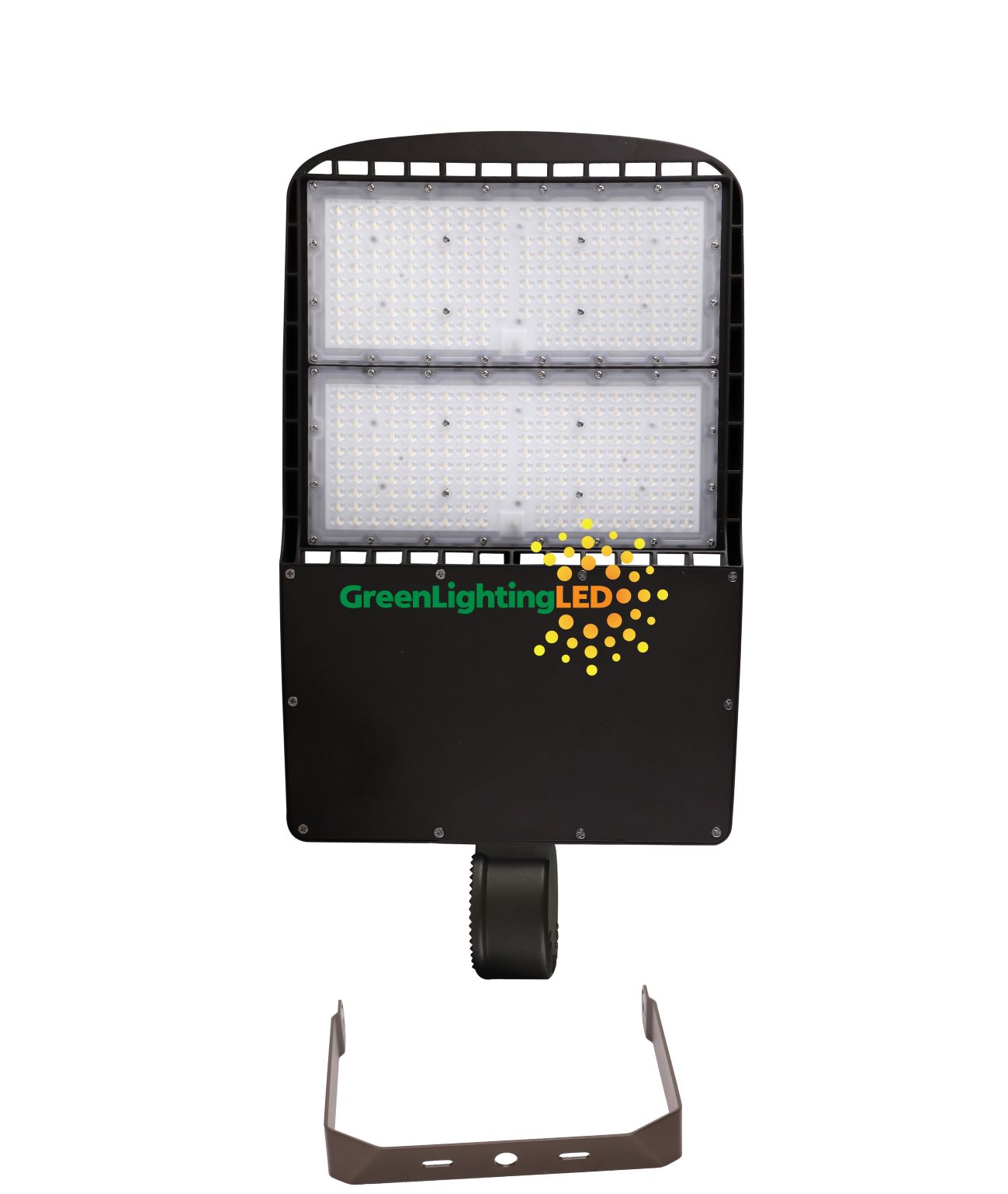

LED MULTI PURPOSE SHOEBOX FIXTURE | 300 Watt | Trunnion Mount | 5000K | 480V

SKU: GLL-G11-300W-CT3H1-BR10SPFM50

LED shoebox and multi purpose fixture with 10KV surge protection and a 6 year warranty.  Photocell included and standard with easy connect and disconnect options.  Specifications listed under the additional information tab.

ORDERING GUIDE & EXAMPLE FOR STOCK INVENTORY:

GLL-G11-300W-CT3H1-BR10SPFM50

GLL = GREEN LIGHTING LED | PRODUCT SERIES | 300W = WATTAGE | C = Seoul Diodes | T3 = Optics | H1 = High Voltage |  BR = Bronze Housing | 10SP = 10KV Surge Protection | FM = Trunnion Mount | 50 = 5000K CCT

Additional information

Weight 17.9 lbs
Dimensions 23.4 × 12.9 × 3.23 in
BEAM ANGLE

T3M

CERTIFICATIONS

cULus, DLC, RoHS

CRI

>70

DIMMABLE

0-10V Dimming

LED TYPE

Seoul Diodes

INPUT VOLTAGE

277~480V; 50/60Hz

OPERATING TEMP

-40°F~122°F

POWER FACTOR

>0.9

THD

≤20%

WARRANTY

6 Years

WATERPROOF

IP65 Wet Location Rated

CCT

5000K

LUMENS

42,000 LM

EFFICACY

140 lm/watt

BASE

FM = Trunnion

HOUSING COLOR

Bronze Housing

SURGE PROTECTION

10KV
